Drainage design study

Courtyard drainage concept

A design concept for discreet surface-water collection within a paved courtyard.

Speak to our team00 0000 0000
A considered approach

Drainage, in context.

This design concept explores the levels, connections and access requirements behind a drainage system. Follow the key decisions from the initial layout through to installation planning.

For your property, the design and scope depend on site measurements, existing services and any required approvals. Use the study to identify the information to include in your enquiry.

Explore Courtyard drainage concept and find the right starting point for your property.

Project enquiry

Get a Free Estimate

Share the details below to request a project conversation.

Courtyard concept / Finish decisions

Retain the paving, reconsider the collection point.

Before a courtyard drain is moved, compare what can remain with what needs verified levels. This is a conceptual comparison, not a construction recommendation.

Keep in viewQuestion to resolve
Door thresholdCan runoff reach the entrance before it reaches the grate?
Paving finishWhich stones can be lifted and reinstated, and is matching material available?
Channel outletWhere does it connect, and has that receiving route been assessed?
AI-generated illustration: New Farm renovated weatherboard Queenslander, shaded veranda, mature subtropical garden and brick courtyard drainage
The surface-water question

Keep the finish. Understand the falls.

The concept begins with the way water crosses the finished area during a heavy storm. A channel location needs to work with the levels, the doorway and the route beyond the grate, otherwise water can simply move the problem somewhere else. Small changes in level can redirect water in unexpected ways.

For a real courtyard, inspect the existing arrangement and identify what can be retained before deciding on a new collection point. Paving, planting, tree roots and existing connections all influence where a drain can sit and how much reinstatement is needed. Treat these as questions to settle, not assumptions.

Concept overview

The grate is one connection in a longer route.

  1. Paved catchmentSurface levels guide runoff.
  2. Collection pointA channel or inlet receives it.
  3. Receiving routeSite-specific assessment establishes the next connection.

Site levels, system capacity and the receiving route need to be confirmed during design.

What could remain

Usable paving, planting and existing connections may be retained where their condition and the proposed levels allow. Keeping what works can reduce disruption and help the finished space stay consistent. Retaining existing features can protect the character of the courtyard, though this depends on the site.

Whether something can stay depends on a site inspection. Cracked paving, damaged pipes and awkward levels may mean parts need to be lifted, so it is sensible to treat retention as a goal rather than a guarantee. An honest assessment will note which parts are worth keeping and why.

What needs confirming

Collection levels, the receiving route, installation access and the boundary of surface restoration all need site information. Without them, any proposed channel position is only an idea. Measurements, falls and the condition of existing pipes are all unknown until someone looks.

A real enquiry should confirm each of these items before any work is scoped. Photographs, existing plans and notes about how the courtyard drains now will help the right questions be asked early. Treat the list as a prompt for questions rather than a finished specification, and expect the details to change once the site has been inspected.

Explore paving and channel drains ↗
← All design studiesDiscuss your own site ↗
AI-generated illustration: compact courtyard passage with wet paving and drainage collection points
Wet paving shows where a courtyard’s falls really run.
Courtyard levels

Setting falls across a paved courtyard

In this concept, the first question is where the water wants to go. Finished levels, door thresholds and boundary walls decide how a courtyard can shed a heavy storm without ponding.

A courtyard that looks flat often hides small falls that were never designed. Before choosing a channel or grate, a concept study maps the high points, the low points and the doorways that must stay dry. Brisbane downpours arrive quickly, so the route for surplus water matters as much as the pipe. Any real project would confirm levels on site rather than rely on a sketch.

  1. Door thresholds first

    Note every sliding door and step. Water should fall away from them, so thresholds set the lowest acceptable paving level near the house.

  2. Walls and boundaries

    Retaining walls and neighbouring fences can trap runoff. Photograph where water collects against them after rain, because that is where falls usually fail.

  3. Subtle falls, not slopes

    Courtyards need gentle, even falls that suit furniture and bare feet, so drainage points are placed to keep the surface comfortable.

  4. Where overflow goes

    Plan for the day a grate blocks. A safe overflow path away from doors is part of a sound courtyard concept.

AI-generated illustration: channel drain and connected outlet beneath lifted paving
Channel drain choices

Choosing channels and grates for courtyard paving

A courtyard concept compares a linear channel, point pits and a combination. Each suits different paving, door positions and clean-out habits, and the grate you can see is only part of the system.

Channel drains collect sheet flow along a line, which suits wide doorways and long edges. Point pits suit smaller paved areas with a clear low spot. Loading class, grate pattern and the size of the outlet pipe all matter, and leaves from Brisbane gardens can bridge a fine grate quickly. A real design would match the product to traffic, finish and the connection available.

  • Linear channels

    Best along thresholds or edges where water arrives across a width. They need a clear outlet with enough fall to carry flow away.

  • Point pits

    Suit small courtyards with one obvious low spot. A single pit can work if the paving falls consistently toward it.

  • Grate pattern and loading

    Slot width, material and strength affect comfort underfoot and how easily leaf litter lodges. Heavier use calls for a stronger rating.

  • Outlet and silt access

    Look for a sediment trap or lift-out basket so debris can be cleared without lifting paving.

Roots and old pipes

Roots, old downpipes and courtyard drainage

Courtyards often sit beside mature trees and older downpipe connections. A sensible concept looks at what is already buried before adding new collection points, so new work does not inherit old faults.

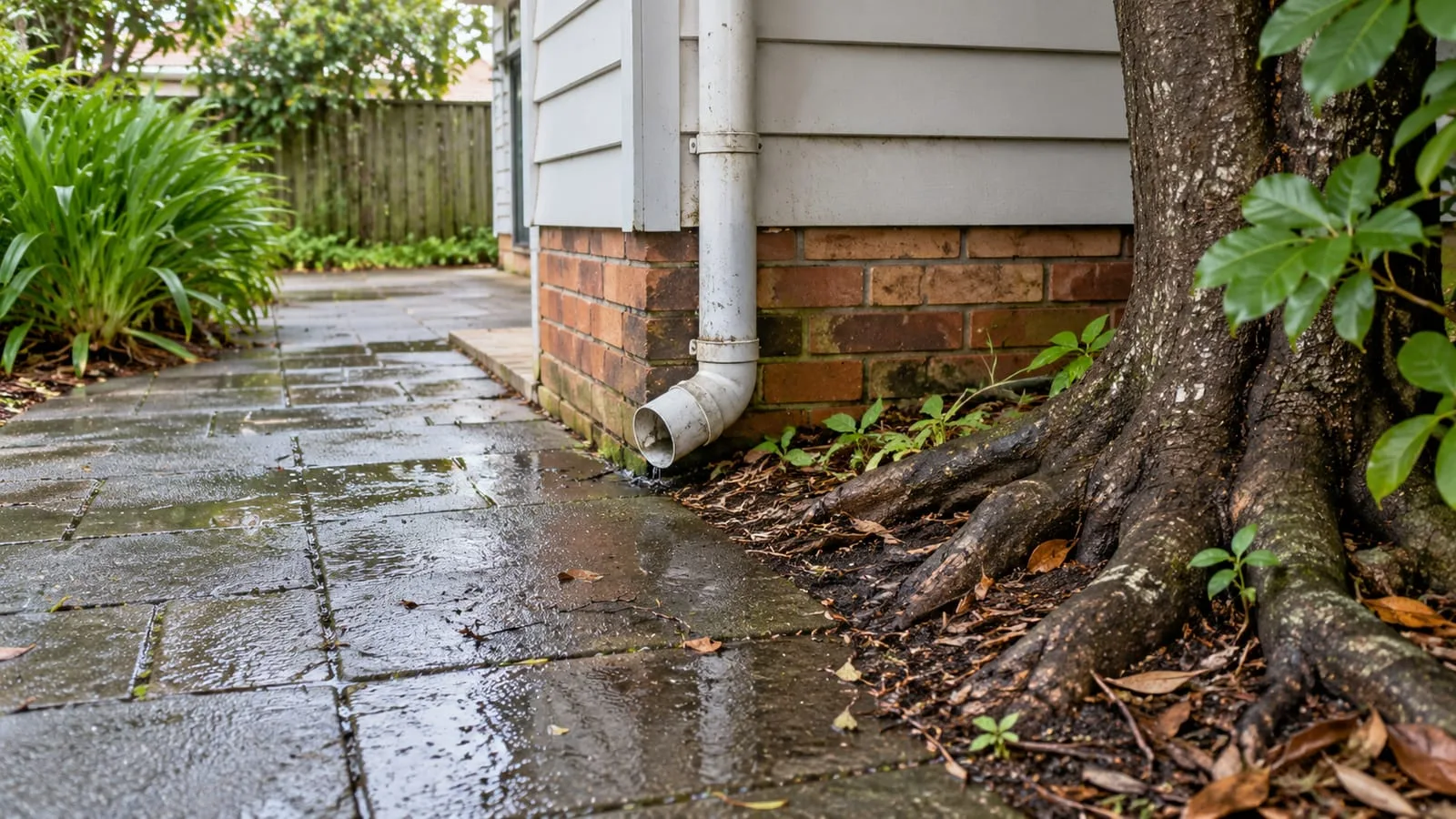

AI-generated illustration: older downpipe connection beside tree roots and wet courtyard paving
Old connections and roots often share the same corner.

Locate existing lines

Trace where each downpipe goes. Unknown or disconnected outlets are common in older properties and are best identified before design.

AI-generated illustration: subtropical garden paving, brown clay-loam edges and a downpipe collection point
Clay-loam garden edges beside a downpipe collection point.

Camera first

An inspection of nearby pipes can show root intrusion or cracks, helping decide whether to reuse, repair or replace a section.

AI-generated illustration: roof outlet and wet patio paving leading to a collection channel
Roof water often reaches a courtyard through a downpipe.

Tree protection

Trenching near large trees can harm roots. Discuss routes and protection with a qualified arborist where a significant tree is close.

Fig, camphor laurel and bamboo roots can lift paving and enter joints in older clay or earthenware lines. Downpipes in Queenslander-era courtyards sometimes discharge to unknown connections. A concept study would suggest locating and inspecting existing lines first, perhaps with a camera, so that new channels are tied into sound pipework. Hidden defects are far cheaper to find before the paving goes down.

Access and records

Keeping courtyard drains accessible for maintenance

A courtyard drain that cannot be reached will eventually be dug up. This concept treats inspection points, clean-outs and a simple record of what was built as part of the design itself.

Inspection pointsAsk where a camera or jetting hose could enter the system without lifting paving, and where those openings would sit.
Simple as-built sketchA marked-up plan of pipe routes and pit positions saves time for anyone working on the courtyard later.
Seasonal habitsClearing grates before the wet season and after leaf-heavy storms keeps small problems from becoming overflow into doorways.
Body corporate shared courtyardsShared areas need a clear responsibility for clearing and inspecting drains, ideally written into maintenance notes.
AI-generated illustration: existing drainage lid, downpipe and wet garden ground
An existing lid and downpipe worth locating first.
